STLTG Asphalt Mixing Plant
Our asphalt plants are integral to any project that involves creating or maintaining pavements, providing essential materials efficiently, accurately, and affordably.
Mixing Capacity
750-5000 kg/batch
Output Capacity
40-320t/h
Popular Asphalt Mixing Plant Types
An asphalt plant is a facility designed to produce asphalt mixtures, which are essential for constructing and maintaining roads, highways, parking lots, and other pavement surfaces. These plants mix aggregates (like sand, gravel, or crushed stone) with bitumen (a petroleum product) to create asphalt concrete.
Here are some popular STLTG asphalt plant that sells best:

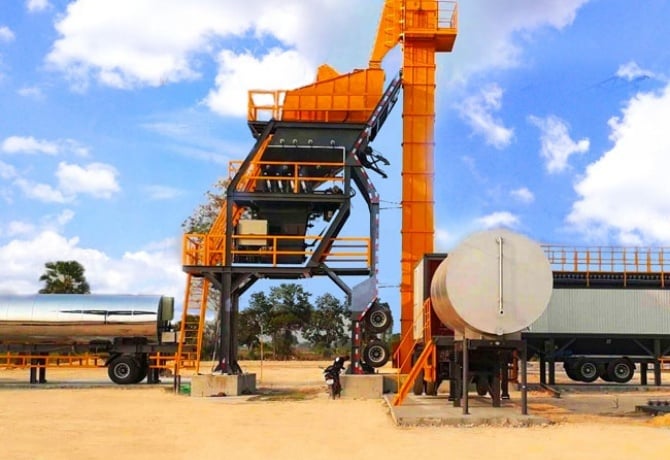

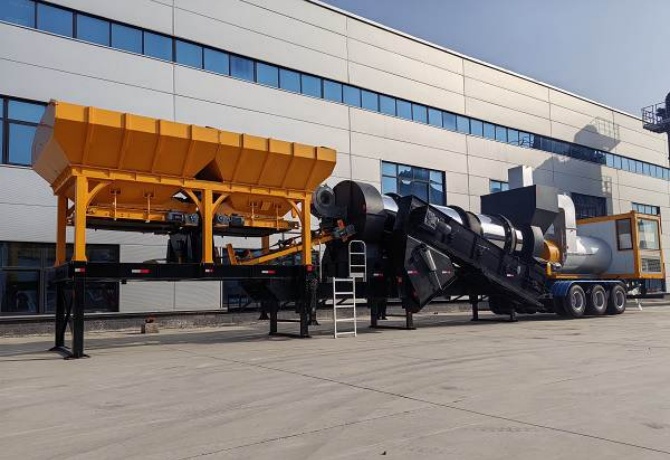

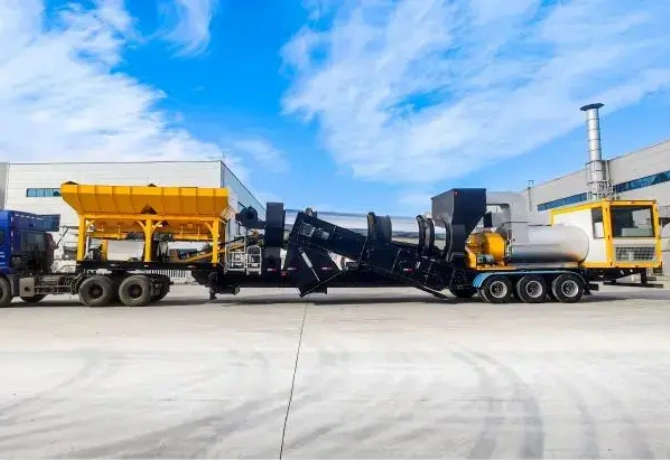

Mobile Asphalt Plant
Mobile asphalt plants are particularly well-suited for mountainous regions and confined spaces because of their modular design, which allows them to be mounted on vehicle chassis for easy relocation. Additionally, for long-distance road construction projects that involve narrower paths, portable hot mix plantsโespecially the integrated typesโoffer distinct advantages like quick transportation, simple setup, and fast production restarts.
Quick View:
Models: LBQY60-LBQY160
Hopper Capacity: 4×4.5m-5x8mยณ
Diesel Engineering Power: 200- 400KW
Output Capacity: 60-160t/h
For more rated voltage range and capacity, welcome to send inquiry for details.
Stationary Asphalt Plant
Stationary asphalt plants are beneficial for large, ongoing construction projects due to their capacity, quality control, and overall efficiency, making them a preferred choice for contractors involved in significant paving jobs.
Quick View:
Models: LB1000-LB4000ย
Hopper Capacity: 4ร4.5 mยณ-6ร15 mยณ
Output Capacity: 80โ320t/h
For more rated voltage range and capacity, welcome to send inquiry for details.
Simple Asphalt Plant
Simple asphalt mixing plants typically have lower initial investment costs compared to more advanced and complex plants. They are a cost-effective option, especially for small-scale projects or those with budget constraints.
Quick View:
Models: LY10-LY20
Mixing Drum Capacity: 1500L-3000L
Output Capacity: 10โ20t/h
For more rated voltage range and capacity, welcome to send inquiry for details.
WHAT MAKES US SPECIAL?
80+
Successful Projects
100%
Satisfied Customers
90+
Exported Countries
STLTG Asphalt Plant Specification
Technicalย performanceย parametersย ofย mainย partsย ofย LBย seriesย asphaltย mixingย equipment
| ย Parametersย ย ย ย ย ย ย ย ย ย Model | LB-1000 | LB-1500 | LB-2000 | LB-3000 | LB-4000 | LB-5000 |
| Width(mm)of feeder belt | 500 | 500 | 600 | 650 | 650 | 800 |
| Conveying capability (t/h)(adjustable)of feeder | 60-180 | 60-200 | 60-200 | 60-360 | 60-360 | 60-500 |
| Number of feeder hoppers(Pcs.) | 4 | 5 | 5 | 6 | 6 | 6 |
| Volume of skeletal material hopper of feeder | 4/32mยณ | 5/40mยณ | 5/40mยณ | 6/60mยณ | 6/60mยณ | 6/90mยณ |
| Width of belt conveyor | 500 | 650 | 650 | 800 | 800 | 800 |
| Diameter of heating cylinder(m) | 1.65 | 1.85 | 2.2 | 2.5 | 2.75 | 2.8 |
| Length(m)of heating cylinder | 7 | 7.5 | 9.1 | 9.5 | 10.2 | 12 |
| Productivity (t/h)of heating cylinder (water content 5%) | 100 | 140 | 180 | 265 | 380 | 480 |
| Lifting capacity(t/h)of hot material elevator | 120 | 140 | 180 | 265 | 340 | 450 |
| Productivity(un)of hot material vibrating screen | 120 | 140 | 180 | 260 | 340 | 450 |
| Yield(kg)of each mixing pot | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 |
| Mixing time(s)(adjustable) | 30-60 | 30-60 | 30-60 | 30-60 | 30-60 | 30-60 |
| Volume of mixed material bin | 40Underlaid | 40Underlaid | 60Underlaid | 100Underlaid | 100Underlaid | 100Underlaid |
| Unloading height(m)of mixed material bin | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 4.0 |

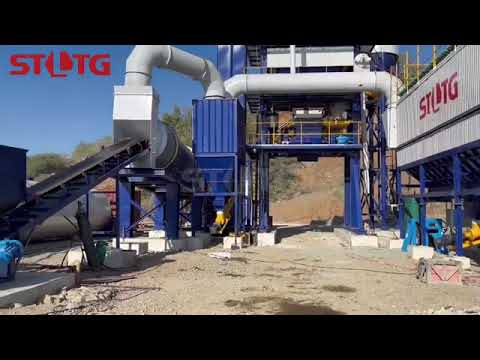

STLTG Asphalt Mixing Plant on Worksite
We Provide The Best Service
Warranty
Equipment free warranty period of one year.
Fast Shipping
Prompt product shipping, home delivery.
Installation Guides
Engineer experts guide product installation.
Local Service
Local service network, timely wearing parts supply and service.
Customized Design
Support customized color, specification, capacity and so on.
Online Support
24 online for any help you need, we are always glad to be here for you.

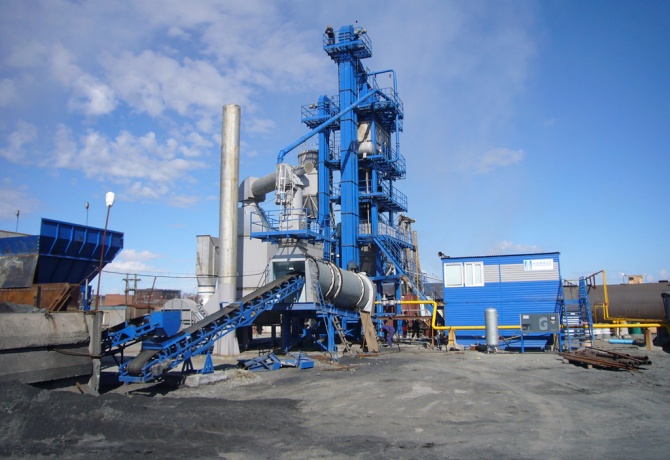

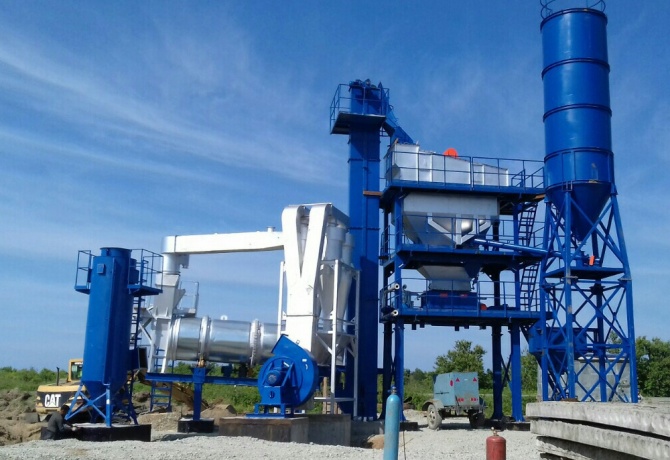

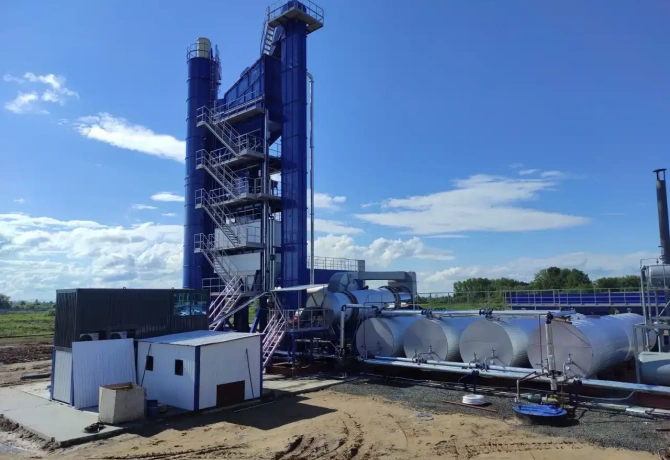

Latest Projects
STLTG asphalt mixing plants are popular in countries such as South Africa, Australia, India, Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, French Guiana, Guyana, Paraguay, Peru, Suriname, Uruguay, Venezuela, Kenya, Uganda, Tanzania, Nigeria, Syria, Lebanon, Iran, Israel, Egypt, Sudan, Libya, Indonesia, Laos, Malaysia, the Philippines, Singapore, Thailand, and Vietnam, among others.
STLTG LB1000 Asphalt Plant
Caracas, Venezuela
STLTG Mobile Asphalt Mixing Plant
Lagos, Nigeria
STLTG Continuous Drum Asphalt Mixing Plant
Khartoum, Sudan
STLTG LBQY60 Asphalt Plant
Jakarta, Indonesia
STLTG LB2000 Asphalt Plant
Quito, Ecuador
STLTG Continuous Drum Asphalt Mixing Plant
Montevideo, Uruguay
