Mobile Crushing Plant for Sale

STLTG Crushing Plant for Sale

Process a variety of aggregates, including stone, gravel, and concrete, ensuring consistent size reduction and high-quality output for construction and landscaping projects.

Type

Wheeled/crawler mobile crushing plant

Capacity

50-650T/H

Get Quote Send Email

Hot Selling Stone Mobile Crushing Plant Types

STLTG manufacturers mobile crushing plants and screening plants, and we also provide some featured cushers including jaw crushers, impact crushers, cone crushers. They are equipped with high technology and control systems, are easy to transport, and comply with international road transport standards.

Wheeled Mobile Crushing Plant

Specifically designed for crushing a wide range of stones, from limestone to basalt, meeting customer specifications for sizes from 0-60 mm.

Here we have: wheeled jaw crushing plant, impact crushing plant, cone crushing plant with vibrating screen, sand making machine with vibrating screen.

Quick View:

Output capacity: 80-650t/h

Feeding Size: 350-800mm

Features: Flexible parking function

For more rated voltage range and capacity, welcome to send inquiry for details.

Get A Free Quote Now

Learn More Details

Crawler Mobile Crushing Plant

STLTG crawler-type hydraulic drive crushing station is a crushing and screening equipment. It is developed by introducing the technology from world famous mining company.

Here we have: crawler jaw crushing plant, crawler impact crushing plant, ect.

Quick View:

Capacity: 130-350t/h

features: save energy, crush various materials

For more rated voltage range and capacity, welcome to send inquiry for details.

Get A Free Quote Now

Learn More Details

Featured Stone Crushers

Crushing plants often incorporate a combination of these crusher types to achieve the desired crushing performance and product quality.

Here we have: cone crusher, vibrating screen, vibrating feeder, jaw crusher, hammer crusher, impact crusher, ect.

Quick View:

Capacity: 50-350t/h

Features: wear-resistant, overload protection

For more rated voltage range and capacity, welcome to send inquiry for details.

Get A Free Quote Now

Learn More Details

WHAT MAKES US SPECIAL?

80+

Successful Projects

100%

Satisfied Customers

90+

Exported Countries

STLTG Stone Crushing Plant Specification

Detailed Specifications of STLTG Wheeled Jaw Crushing Plant:

Model	STLTG938HD86	STLTG1149HD98	STLTG1349HD110	STLTG1349HD125
Transportation Length(mm)	12600	13500	14500	15200
Transportation Width(mm)	2600	2700	2800	2900
Transportation Height(mm)	3870	4200	4450	4500
Maximum Length(mm)	12500	14000	16100	16700
Maximum Width(mm)	4100	4500	5100	5100
Maximum Height(mm)	4100	4900	5000	5300
Weight(t)	39	57	62	67
Tire Configuration	Dualaxial	triaxial	triaxia	triaxial
Jaw Crusher	HD86	HD98	HD110	HD125
Maximum Feeding Size(mm)	500	550	660	800
Discharge opening range(mm)	50-150	75-175	100-200	125-225
Capacity (tn)	85-275	110-350	215-510	280-650
Vibrating Feeder	ZSW380×95	ZSW420×110	ZSW490×130	ZSW490×130
Main Belt Conveyor	3800×8.5M	B1000×9.5M	B1000×11M	B1200×11M
side-opening Belt conveyor(optional)	B500×3M	B650×3.5M	B650×4M	B650×4M
Genset(Optional)	200KW	250KW	270KW	400KW
Iron remover(optional)	RCYD(C)-8	RCYD(C)-10	RCYD(C)-10	RCYD(C)-12

Detailed Specifications of STLTG Wheeled Impact Crushing Plant:

Model	STLTG938F1210	STLTG938F1214	STLTG1149F1315	STLTG938F1110	STLTG1349F1315
Transportation Length(mm)	12000	2000	13900	15450	15450
Transportation Width(mm)	2550	2550	2900	2950	2950
Transportation Height(mm)	3900	3900	4450	SO(	4500
Maximum Length(mm)	12500	12500	13900	15450	15450
Maximum Width(mm)	3250	3260	3250	3250	3250
Maximum Height(mm)	5100	5200	5200	5200	5200
Weight(t)	39	44	54	62	62
Impact Crusher	PE-1210	PE-1214	PF-1315	HD1110	HD1315
Maximum Feeding Size(mm)	350	350	500	400	700
Capacity (tn)	70-130	100-180	130-250	112	280
Vibrating Feeder	ZSW950×3800	ZSW950×3800	ZSW110×4900	ZSW130×4900	ZSW130×4900
Main Belt Conveyor	B800×8.5M	B800×8.5M	B1000×9.5M	B800×11M	B1200×11M
Side-opening Belt Conveyor(optional)	8500×3.2M	B500×3.2M	B650×4M	B650×4M	B650×4M
Genset(Optional)	320KW	320KW	400KW	320KW	440KW
Iron Separator(optional)	RCYD(C)-8	RCYD(C)-8	RCYD(C)-10	RCYD(C)-8	RCYD(C)-12

Ask for Full Specification

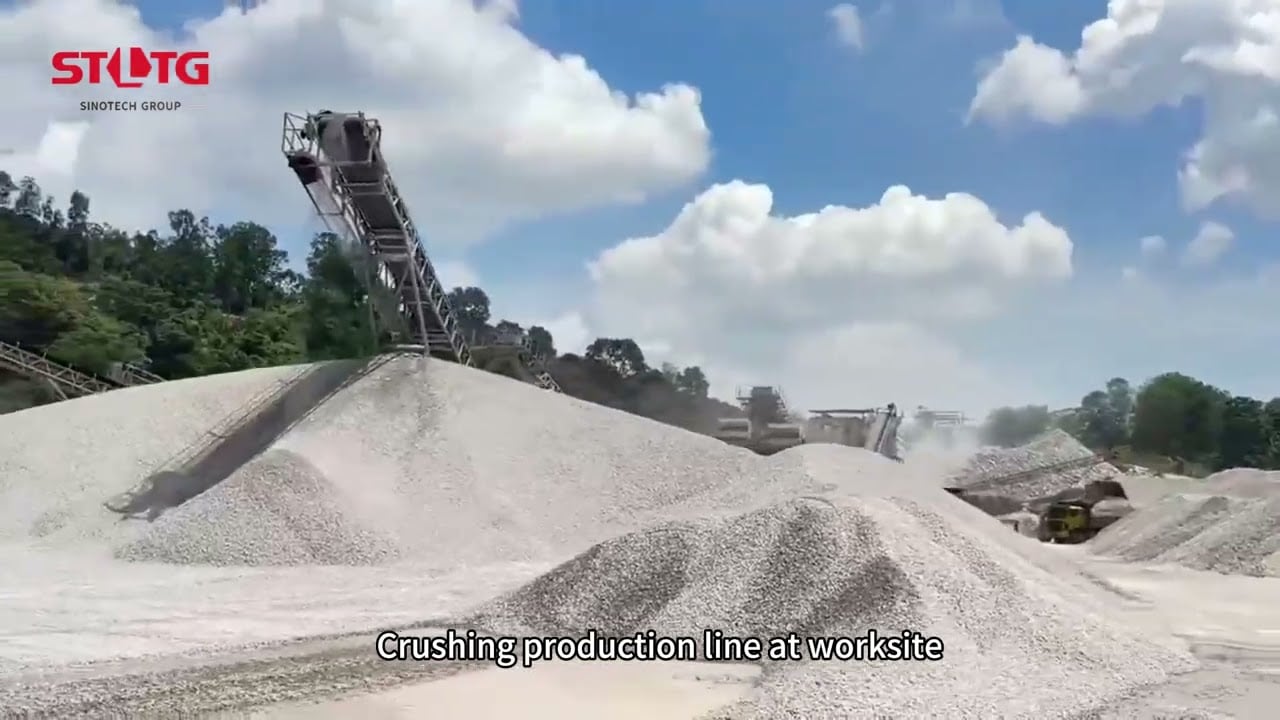

STLTG Crushing Plant On Worksite

https://youtu.be/9ArxnJu42OQ

We Provide The Best Service

Warranty

Equipment free warranty period of one year.

Fast Shipping

Prompt product shipping, home delivery.

Installation Guides

Engineer experts guide product installation.

Local Service

Local service network, timely wearing parts supply and service.

Customized Design

Support customized color, specification, capacity and so on.

Online Support

24 online for any help you need, we are always glad to be here for you.

Latest Projects

We are proud to share that our crushing plant has been successfully exported to numerous countries around the world, including Kenya, Zambia, the Philippines, South Africa, Australia and so on. Blew are some order from our customers.

These machines have played a crucial role in helping customers complete their construction projects efficiently and effectively.

With our reliable technology and commitment to quality, you can trust that our crusher plant will meet your needs and enhance your project’s success, no matter where you are located.
