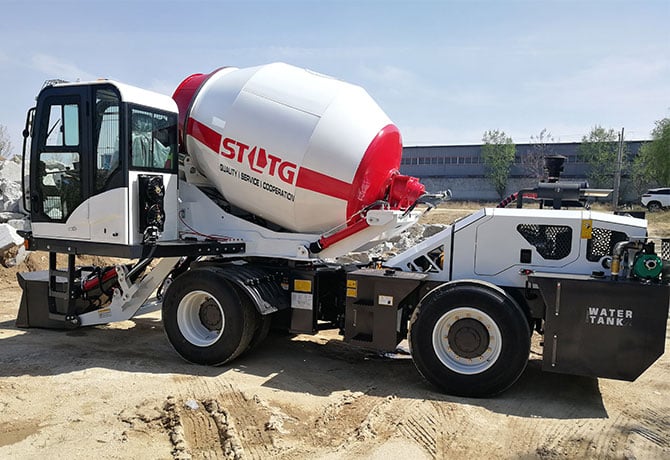

STLTG Self Loading Concrete Mixer for Sale

STLTG Self Loading Concrete Mixer

From residential and commercial buildings to roadworks and industrial sites, STLTG self loading mixers are adapted to meet the diverse needs of various construction fields.

Discharge Capacity

1.2m³-6.5m³

Output Capacity

5-30m³/h

Get Quote Send Email

Popular Self Loading Concrete Mixer Types

We offer two main types of self-loading mixers: the drum self-loading mixer and the pan self-loading mixer.

Drum Self-Loading Mixer: This type features a rotating drum that mixes the materials as it’s being loaded and transported. It’s ideal for larger batches and is often preferred for projects requiring high mobility and efficiency in mixing concrete.

Pan Self-Loading Mixer: In contrast, the pan self-loading mixer uses a stationary pan where ingredients are mixed by blades. This design is particularly effective for smaller batches or when a more thorough mixing is necessary, ensuring that all components are well-combined.

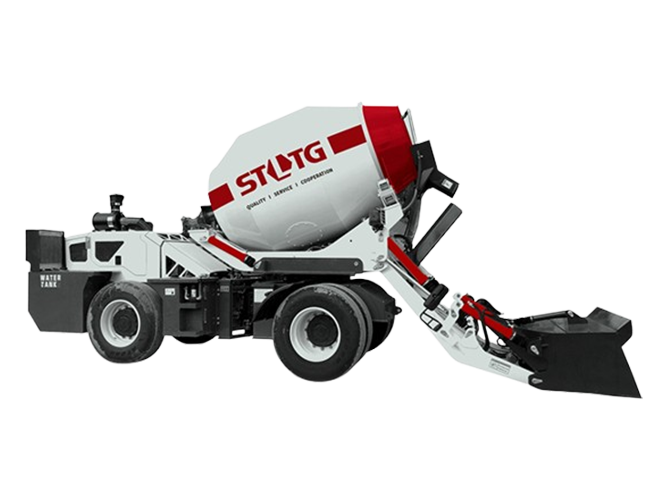

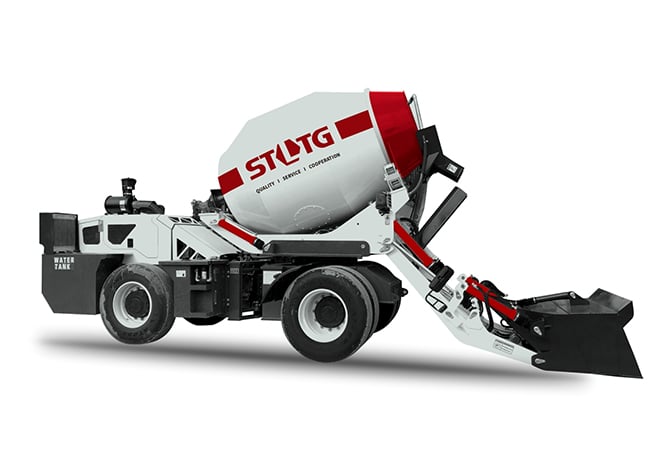

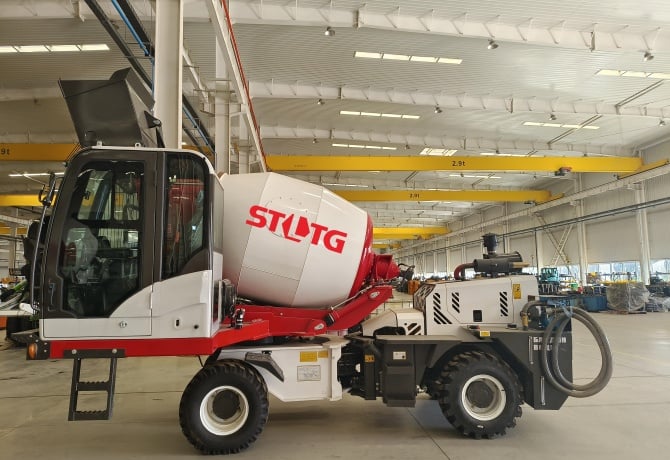

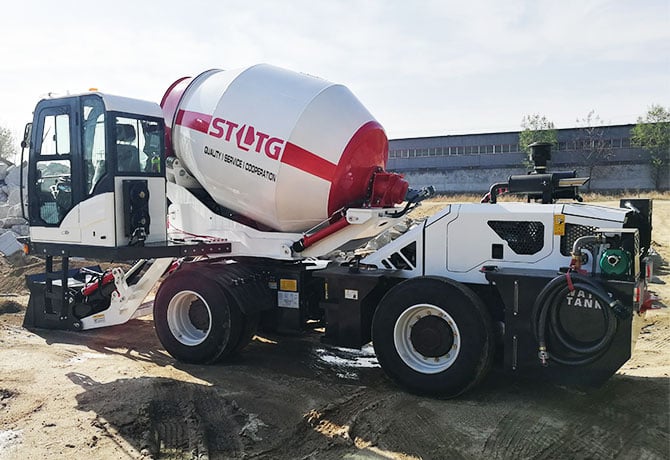

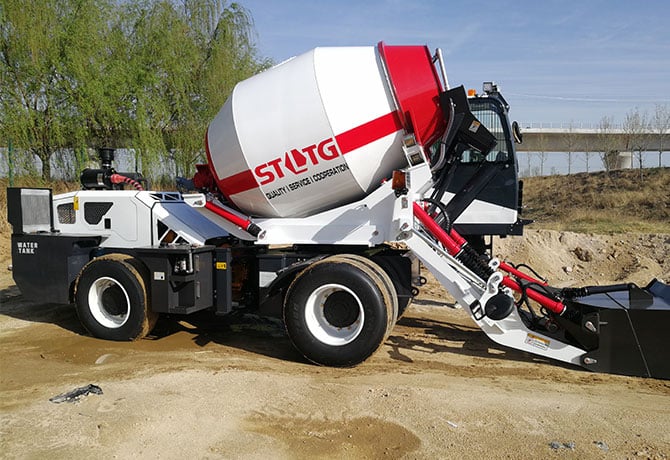

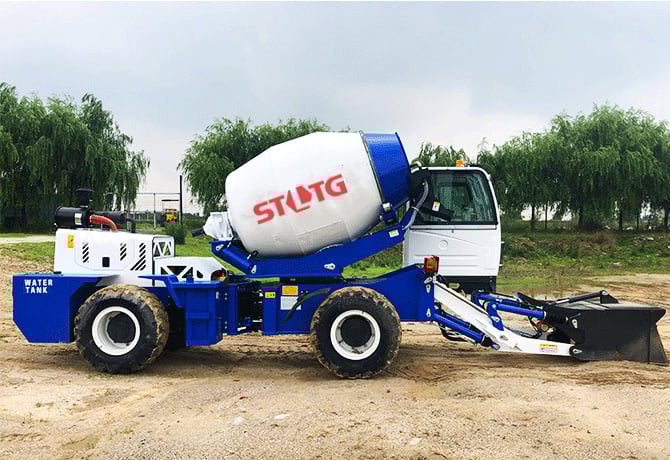

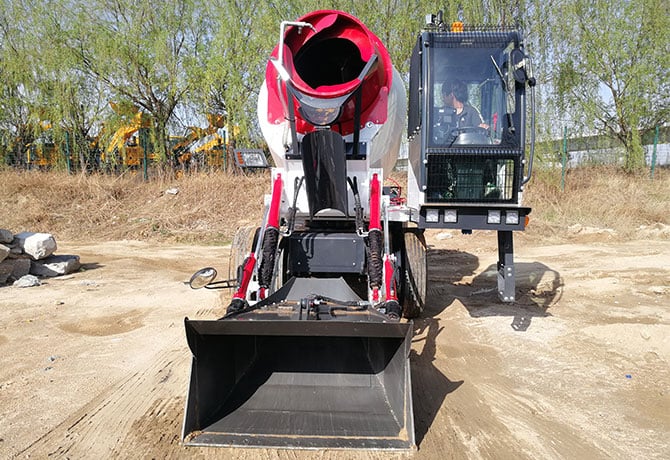

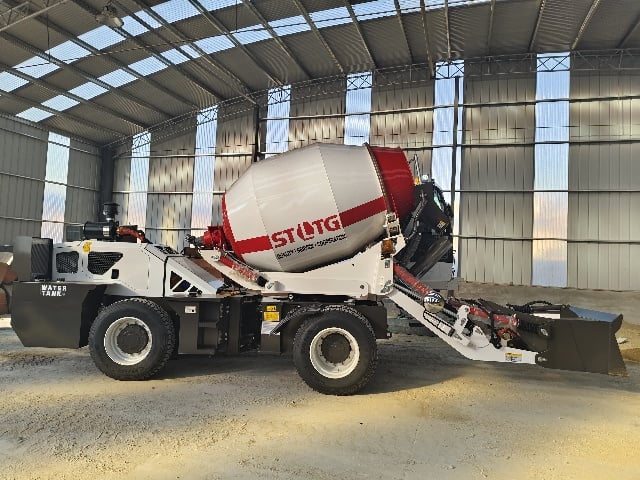

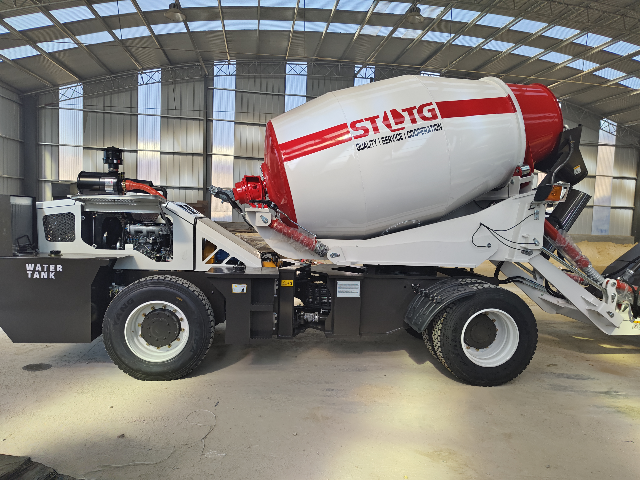

Drum Self Loading Concrete Mixer

The drum rotates to mix the concrete while it’s being transported. These mixers typically come with an integrated loading system, allowing them to scoop materials directly from storage sites.

Quick View:

Models: STLTG-1.2~STLTG-6.5

Discharge Capacity: 1.2m³-6.5m³

Output Capacity: 5-30m³/h

For more rated voltage range and capacity, welcome to send inquiry for details.

Get A Free Quote Now

Learn More Details

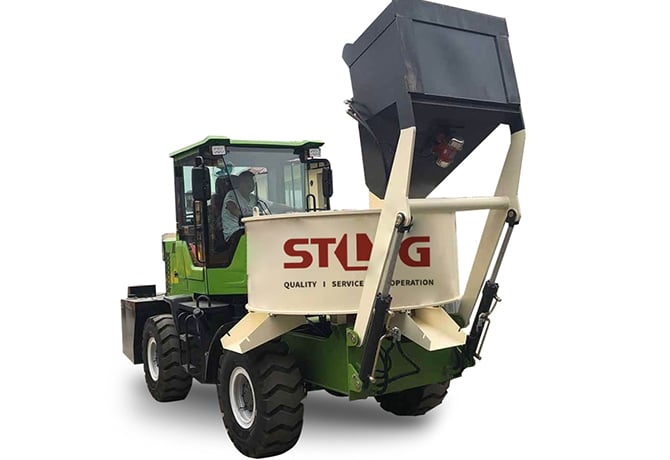

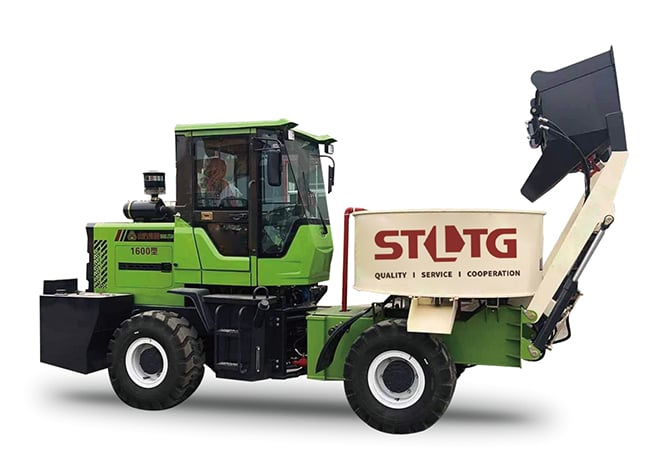

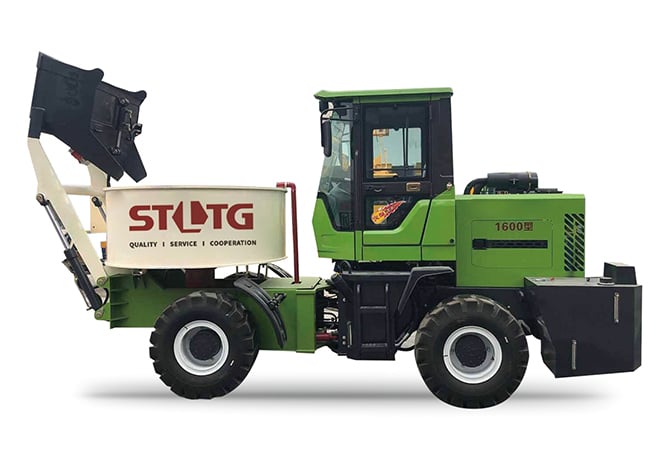

Pan Self Loading Concrete Mixer

This type features a fixed mixing pan where the ingredients are combined using horizontal mixing blades. The pan is generally enclosed, improving the mixing process. Users can closely control mixing time and speed, allowing for optimal consistency.

Quick View:

Models: STLTGP-1.2~STLTGP-2.0

Rated Power: 55-78kw

Discharge Capacity: 1.2m³-2.0m³

For more rated voltage range and capacity, welcome to send inquiry for details.

Get A Free Quote Now

Learn More Details

WHAT MAKES US SPECIAL?

80+

Successful Projects

100%

Satisfied Customers

90+

Exported Countries

STLTG Self Loading Mixer Specification

Equipment Model	STLTG-1.2	STLTG-1.8	STLTG-2.0	STLTG-2.6	STLTG-3.5	STLTG-4.0	STLTG-5.5	STLTG-6.5
Discharge Capacity	1.2m3	1.8m3	2m3	2.6m3	3.5m3	4m3	5.5m3	6.5m3
Output/Capacity	5~10m3/h	8~12m3/h	10m3/h	11~17 m3/h	14~18m3/h	16~20m3/h	22~25m3/h	26~30m3/h
Engine Model	YUNNEI supercharged engine	Yuchai 4102 Turbo-charged			Yuchai 4105 Turbo-charged	Yuchai 4108 Turbo-charged	Yuchai Turbo-charged	Weichai deutz 6105 Pressure boost
Rated Power	58KW	78KW	78KW	78KW	85KW	91KW	92KW~110KW	92KW~110KW
Gear	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back
Oil Tank	16 liters	16 liters	16 liters	16 liters	16 liters	16 liters	16 liters	16 liters
Water Tank	400L	500L	500L	500L	780L	850L	1200L	1465L
Water Supply	Time relay	Time relay	Time relay	Time relay	Time relay	Time relay	Time relay	Time relay
*Overall dimensions(LWH)*	640025502450	730026503750	730026503750	780027203000	780027203300	845031004580	845031004580	845030503860
Curb Weight (kg)	4185	6500	6500	6500	7200	8500	11200	12520
Drum Rotate	270º	270º	270º	270º	270º	270º	270º	290º

Above are brief specifications, welcome to send inquiries for details.

Ask for Full Specification

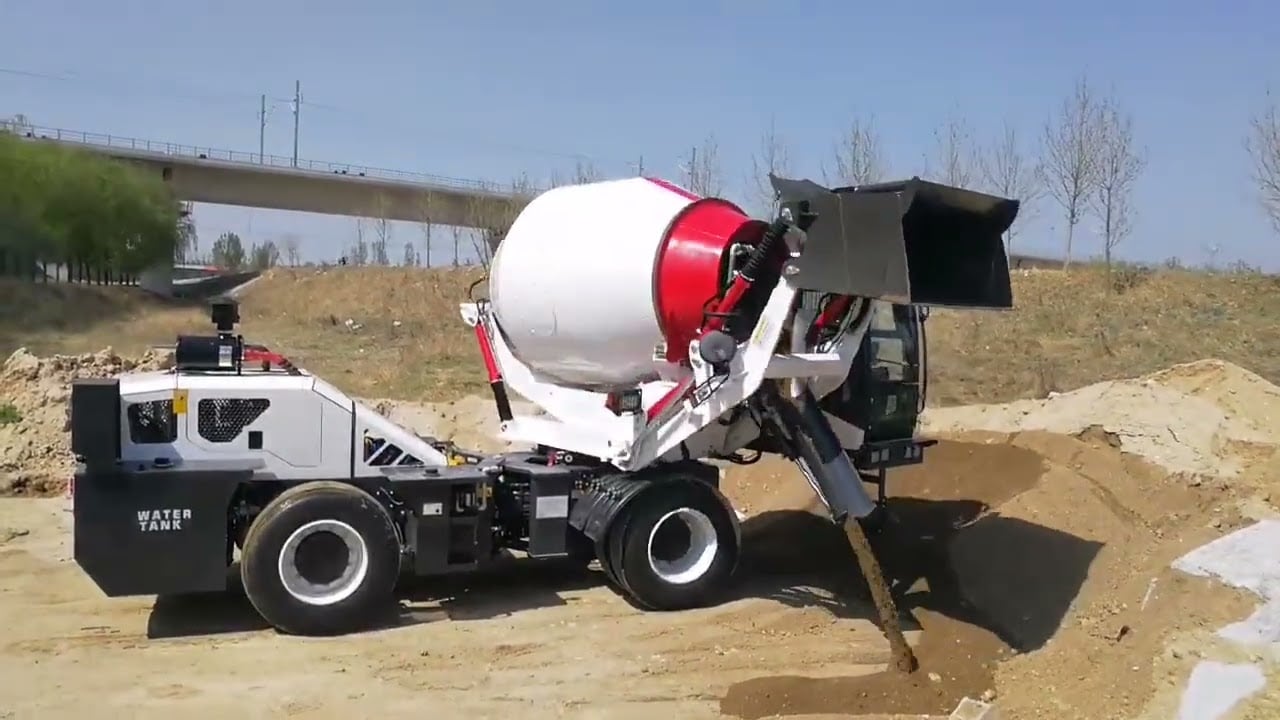

STLTG Self Loading Concrete Mixer Video

Self Loading Concrete Mixer Price

Model	STLTG Price Range	Other Brands
Self loading concrete mixer	$10,000 – $70,000	$80,000

The price can also vary depending on the customization services you opt for, as we strive to meet your specific project needs and budget constraints. We offer a bespoke service, allowing you to tailor your self loading mixer to your exact requirements.

Remember, investing in our equipment is not just about the initial cost, but the value, efficiency, and long-term savings it provides.

Get A Free Quote Now

We Provide The Best Service

Warranty

Equipment free warranty period of one year.

Fast Shipping

Prompt product shipping, home delivery.

Installation Guides

Engineer experts guide product installation.

Local Service

Local service network, timely wearing parts supply and service.

Customized Design

Support customized color, specification, capacity and so on.

Online Support

24 online for any help you need, we are always glad to be here for you.

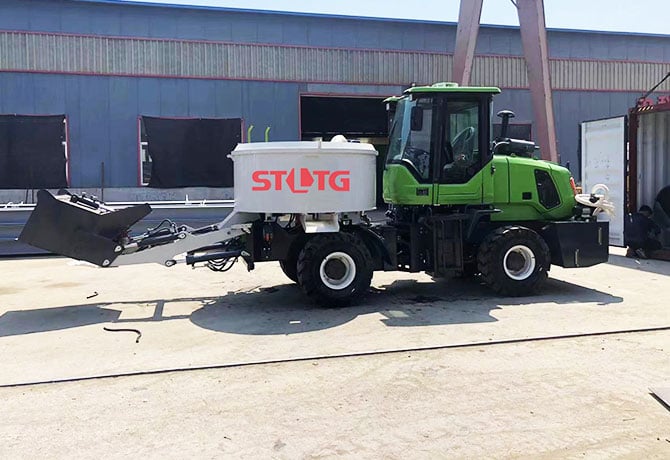

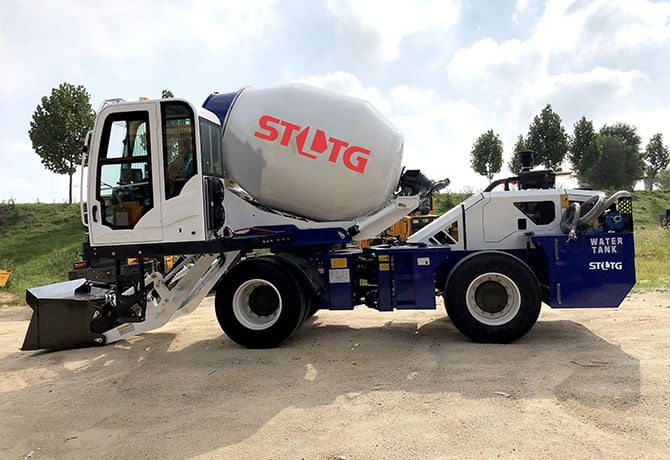

Latest Projects

Our self-loading mixers have been successfully deployed in a variety of countries around the globe. These machines have been pivotal in enabling our customers to complete their construction projects efficiently and effectively, regardless of the challenges faced.

With our cutting-edge technology and unwavering commitment to quality, you can trust that our self-loading mixers will meet your needs and significantly enhance the success of your projects, wherever you may be.
